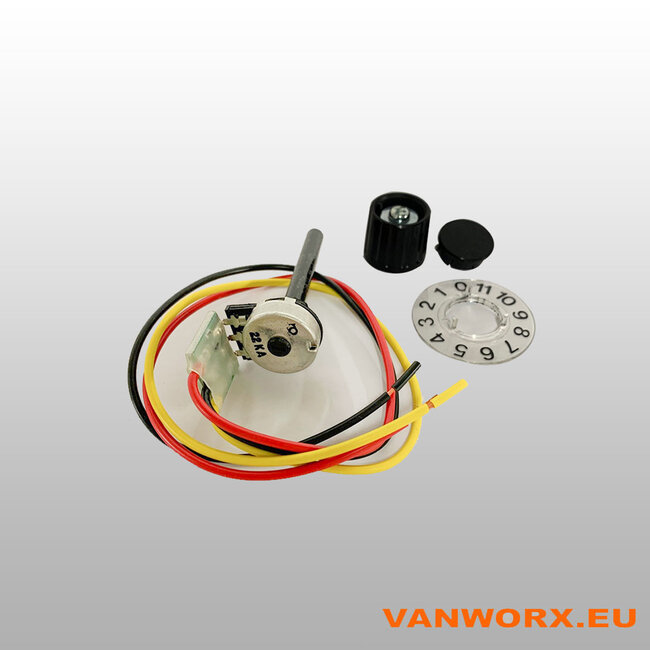

Speed controller, speed regulator Lemans LL Brushless 24V

With the speed control you can blow the fan harder or softer.
The device has been developed to adjust the rotation speed of a direct current motor (or the light capacity of an electric bulb), by means of the regulation.
The adjusting range is between 0 and 100 % of the rotation speed.

When the knob is turned counter clock wise, the function of the controlled component is reduced. The CCW stop also can be used as the OFF function.
When the knob is turned clock wise, the function of the controlled component increases. The CW stop can be compared with an application without the control unit.
The adjustment between the two stops is stepless.

You can only use this for the Lemans LL Brushless 24 Volt version!
