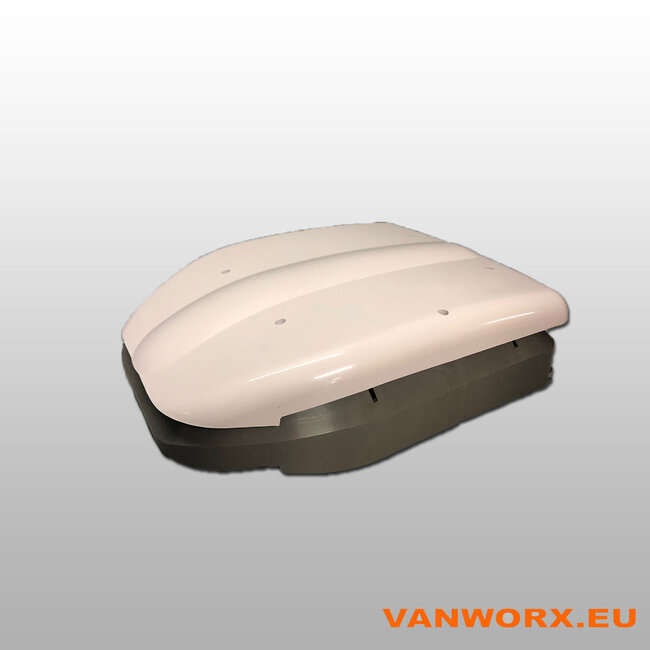

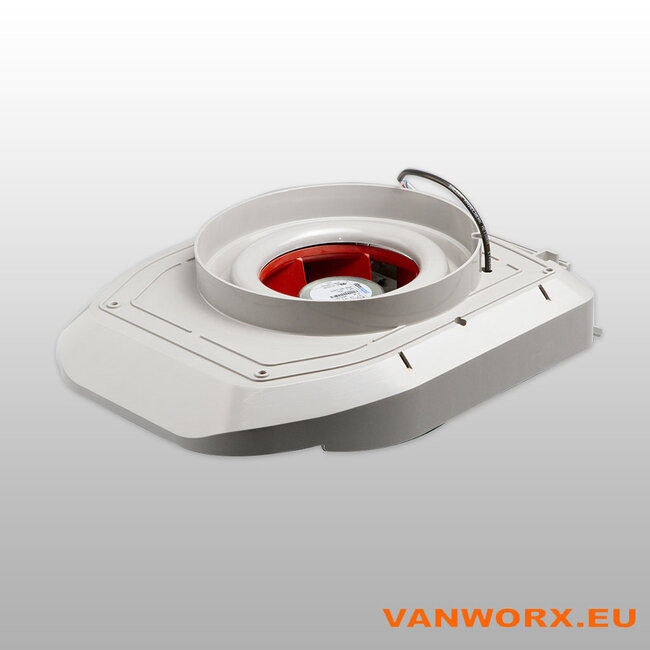

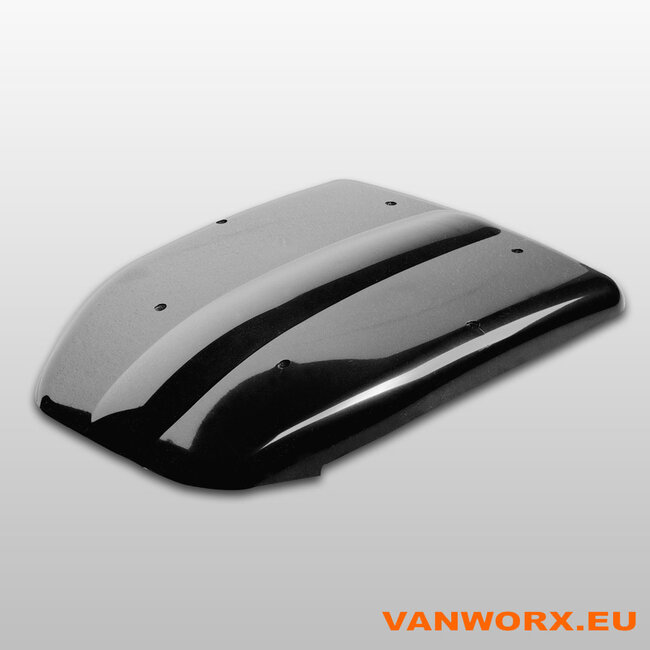

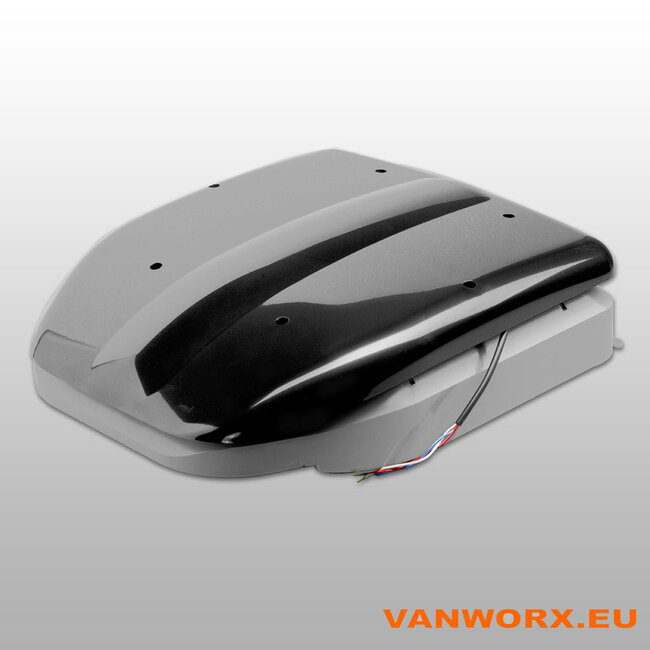

Roof fan Electric 24V: brushless motor

This electric fan from G&C ensures a healthy discharge of air in your vehicle and is a quieter and more economical version of the LeMans. Due to the brushless motor, the fan has a longer life. The roof fan is made of ABS. The voltage is 24 Volts and the consumption is 34 Watts. The fan is available in black and white. The noise level is 65 DB and the speed is 3100 RPM (order a speed controller separately if you want to adjust the speed). The airflow is 515 M³/H. The fan comes standard with an inner grid and saw template. The connection set including 2 position switch can be ordered optionally. The opening in the roof is 230 mm. Construction height is 100 mm.

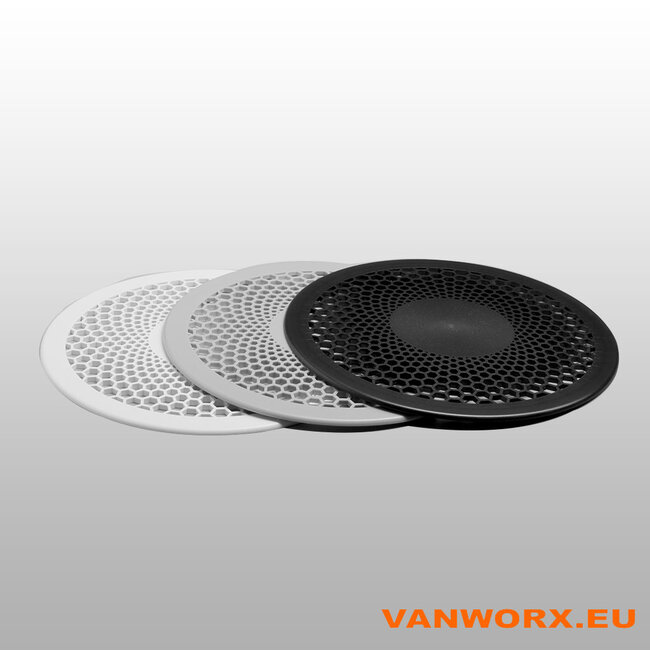

If you want to finish the inside, you can do so with a grille Ø270 mm.
You can order this here.

Application examples: Damp loading areas, trucks, military vehicles, boats, chemical transport, coaches, machine rooms

Specifications:
* Function: extract air
* material: high quality ABS

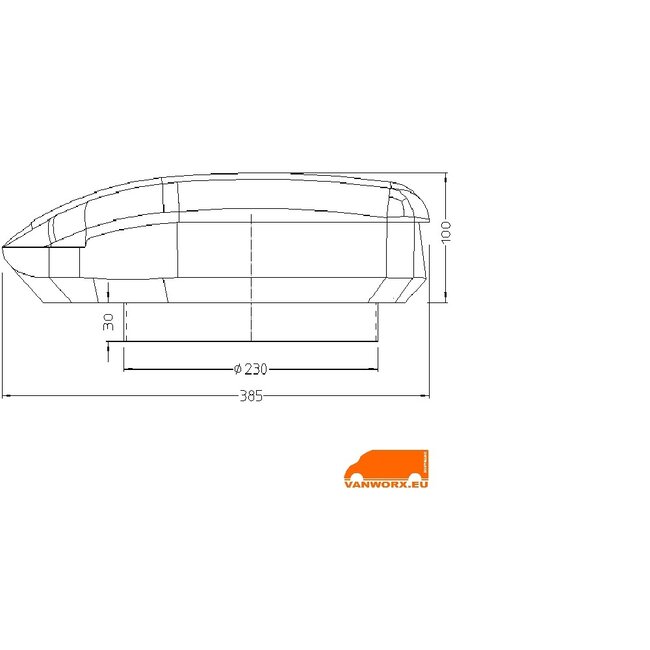

* Opening in roof: 230 mm
* Construction height: 100 mm
* air displacement: 515 M³ per hour
* Available in black and white
