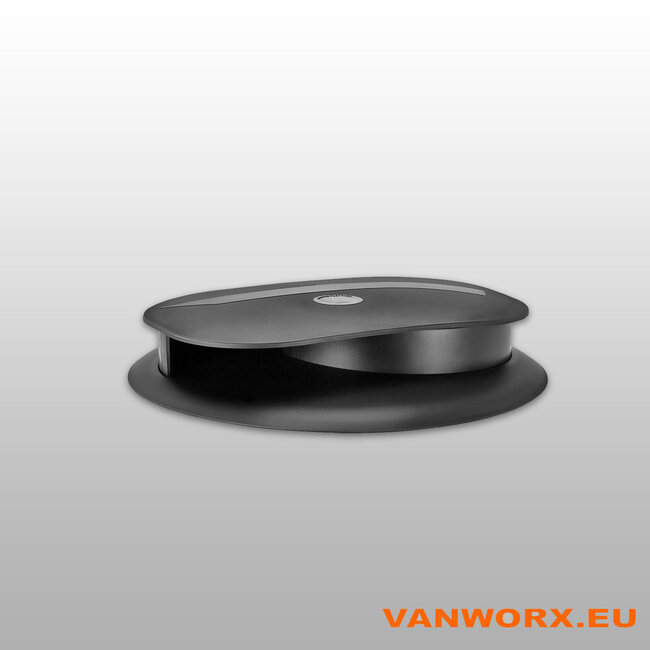

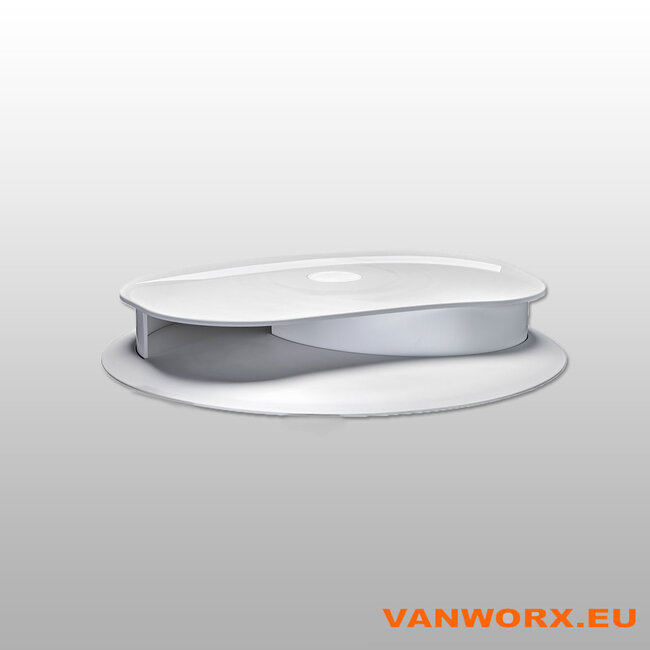

Flettner Slimline
The Slimline is specifically designed for customers dealing with height issues on the roof of their vehicle such as roof-racks that need a lower ventilator to fit underneath it. Due to smart engineering Flettner has designed the Slimline in such a way that it ‘Fits any Roof’.
The new ventilator has a good balance between an aesthetically pleasing design and excellent functionality. Installation could not get any simpler with this model, it comes with four 3mm bolts that secure the shutter on the inside of the vehicle roof.
In terms of technical specifications, this model has a diameter of 252mm and a height of only 58mm.
For vehicles with an inner lining, an Adapter is available to bridge the gap between the outside and the inside of the roof. The adapter allows the ventilators to be fitted to vehicles which have double skinned roofs and acts as a rigid bridge between the inner lining and the shutter.
To achieve optimum airflow, we advise you to install a floor vent.
Assembly instructions and drilling template included in the box!
Application examples: damp areas in boats, transport of chemicals, animal transport, caravan or motorhome
Specifications:
* material: high-quality ABS
* opening in roof: 92 x 44 mm
* Diameter: 252 mm
* Build height: 58 mm
* size of grill: 66 x 150 mm
* grill height: 25 mm
* air flow: 1.14 M³ per min. at 80 km
* Available in black and white
